You may wish to add comments to your XML data. Either select the XML Comment icon or select XML Comment from the Insert menu and then either pick the data from the spooled file or add the static comment.

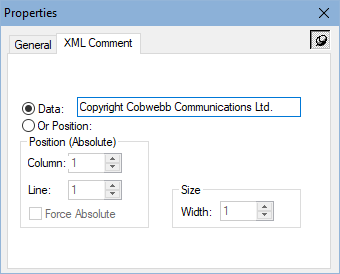

XML Comment Properties

See General Properties for details on the General tab.

Data

If you are not retrieving the data from the spooled file then select this radio button and the fixed data may be entered in the box provided.

Position (Absolute)

If you wish to pass in data from the spooled file then select the Or Position radio button and the following entries will be enabled.

Column

The horizontal position of the element in the input document.

Line

The vertical position of the element in the input document.

Force Absolute

When checked, forces the element to be positioned absolutely in the input document. This is only available if the element exists within a Loop element. See Absolute and Relative positioning for further details.

Size

Width

The width of the element in the input document in grid size units.
